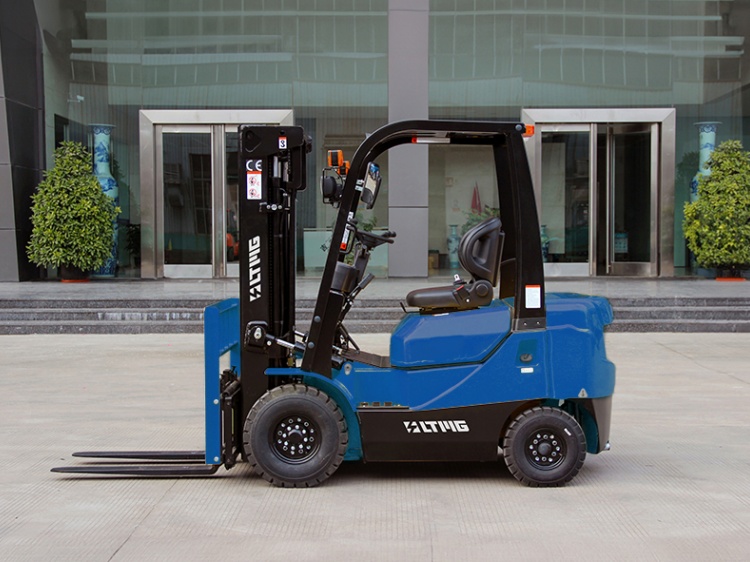

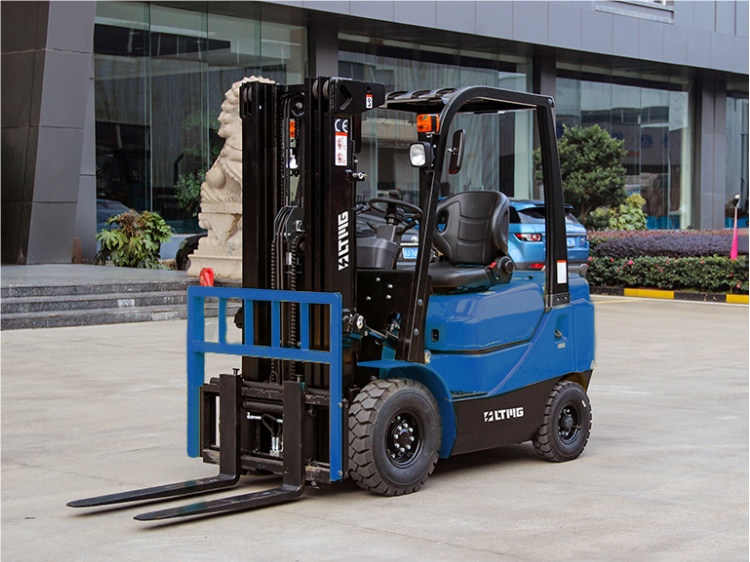

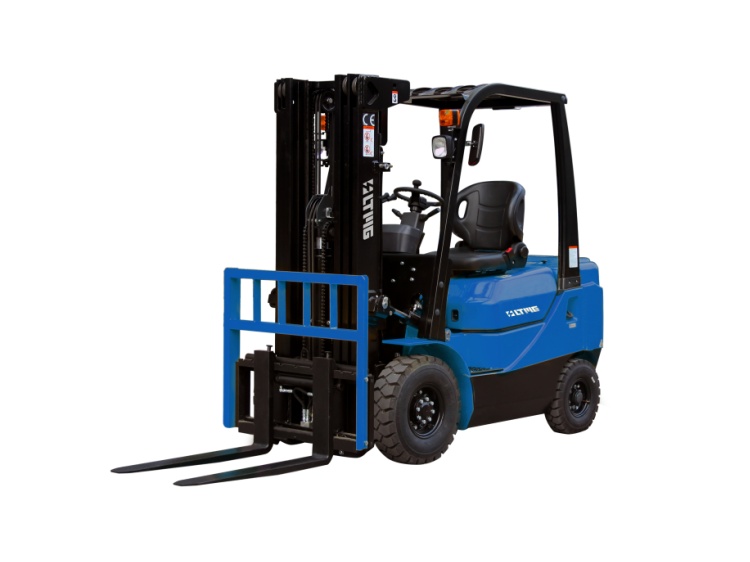

Model | FD18 | |||
Power Type | Diesel | |||
Rated Capacity | kg | 1800 | ||
Load Centre | mm | 500 | ||
Lift Height | mm | 3000 | ||
Fork Size(L×W×T) | mm | 920x120x35 | ||
Mast Tilt Angle(F/R) | Deg | 6°/12° | ||
Front Overhang (Wheel center to fork face) | mm | 410 | ||
Ground Clearance（Bottom of mast） | mm | 110 | ||
Turning Radius (outside) | mm | 2055 | ||
Max.Gradeability (No load/Full load) | % | 20 | ||
Wheelbase | mm | 1400 | ||
Service weight | kg | 3030 | ||
Overall Dimension | Length to face of fork(Without fork) | mm | 2285 | |
Overall Width | mm | 1086 | ||
Mast Lowered Height | mm | 1995 | ||
Mast Extended Height(With backrest) | mm | 3940 | ||
Overhead Guard Height | mm | 2040 | ||
Speed | Travel (Full load) | km/h | 15 | |
Lifting (Full load) | mm/s | 450 | ||
Tire | Front | mm | 6.50-10-12PR | |
Rear | mm | 5.00-8-10PR | ||
Battery | Voltage/Capacity | V/Ah | 12/80 | |
Engine | Model | C240 | NC485BPG-508 | |
Manufacture | ISUZU | XINCHAI | ||
Rated output/r.p.m. | kw | 35.4/2500 | 30/2600 | |
Rated torque/r.p.m. | N·m | 137.7/1800 | 131/1700-1900 | |
No.of Cylinder | 4 | 4 | ||
Bore×Stroke | mm | 86×102 | 85x100 | |
Displacement | cc | 2369 | 2270 | |
Fuel Tank Capacity | L | 45 | 45 | |
Transmission | Type | Hydraulic | Hydraulic | |
Stage(FWD/RVS) | 1/1 | 1/1 | ||
With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
