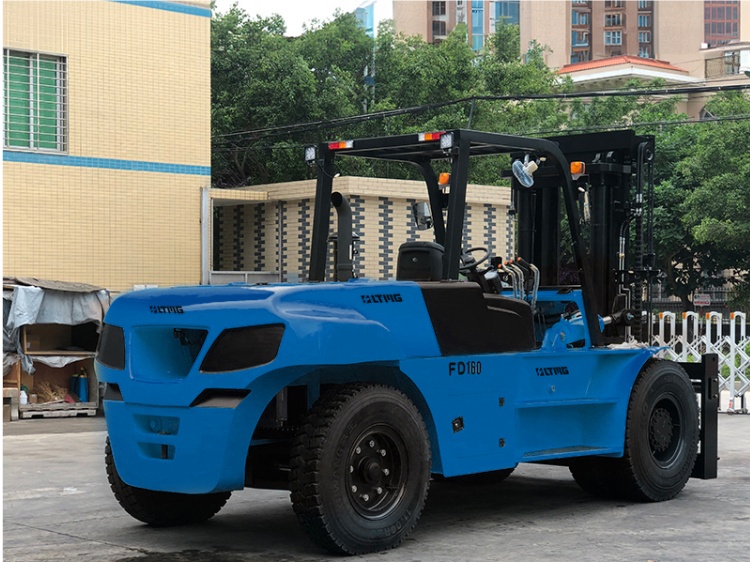

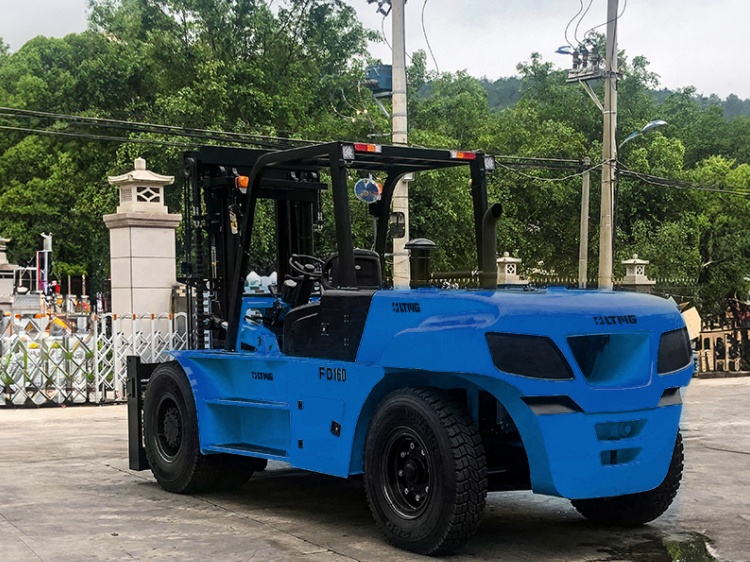

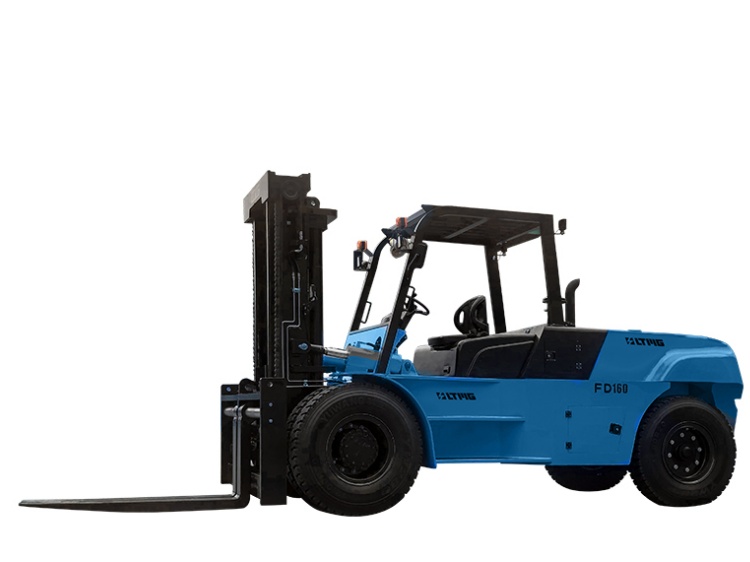

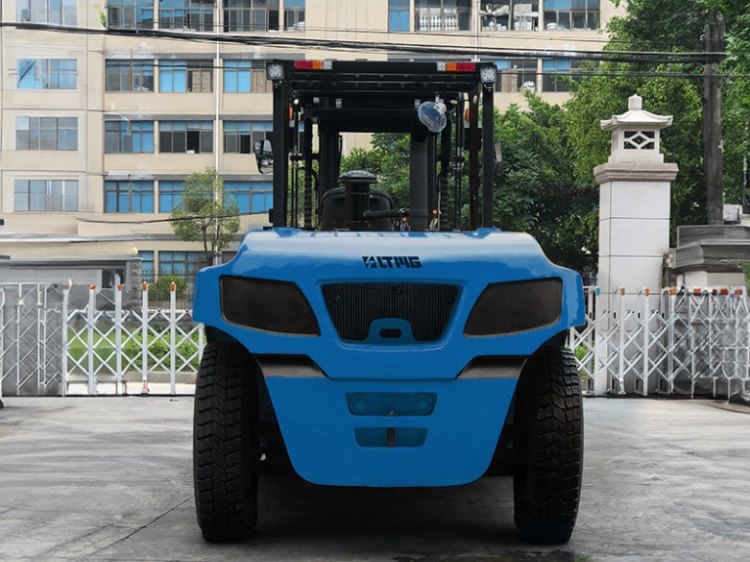

16 Ton Diesel Forklift
Model
FD160
Rated Capacity
16000kg
Lift Height
3500mm
16 Ton Diesel Forklift
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics
  1. Intelligent Starting System, forklift hanging gear start prevent function improves the operation safety and longer gearbox service life.

  2. Standard equipped OPS Operator sensor system to prevent the operation accident results from the wrong operation position of the driver.

  3. The optimization design full vision mast with external pipeline layout provides the best vision for the driver which improves the safety of the driving and operation.

  4. The key type vehicle power outage and the lockable electrical cabinet ensures the safety of outdoor parking.

  5. Intelligent Starting System, forklift hanging gear start prevent function improves the operation safety and longer gearbox service life.

  6. Standard equipped OPS Operator sensor system to prevent the operation accident results from the wrong operation position of the driver.

  7. The optimization design full vision mast with external pipeline layout provides the best vision for the driver which improves the safety of the driving and operation.

  8. The key type vehicle power outage and the lockable electrical cabinet ensures the safety of outdoor parking.

  9. Standard equipped caliper disc hydraulic braking system. 3 sets of large diameter caliper disc brakes for the tires on both sides has a big brake moment, convenient operation, and good braking performance.

  10. The engine intake system adopts the external prefilter and internal double filter element dry filter filting system has a filting efficiency of 99.9% which improves the cleaness of the intaking air to extend the engine life.

  11. Electric one button parking brake, hydraulic power drive, seperate design between the parking brake and the driving brake provides a more reliable and safety parking brake.

  12. Load sensing priority steering hydräulic system, double pump flow fuel feeding design improves the mast working efficiency and energy saving.

  13. World famous imported diesel engines, German ZF transmission, German Kessler wet brake drive axle for options.

  14. Multichannel image system is an option to improve the operation safety.


parameters
Model

FD120FD160
     FeaturesRated LoadQ(Kg)1200016000
Load Centerc(mm)600900
Wheelbasey(mm)29503600
     WeightWeightkg 1550021000
ChassisTire Specs:Front
11.00-20-18PR12.00-24
Tire Specs:Rear
10.00-20-18PR12.00-20
Tires Qty,front/rear(X-dreve wheels)
4/24/2
Wheel tread:Frontb3(mm)16302070
Wheel tread:Rearb4(mm)17802130
DimensionsMast/carriage tilt angle(front/rear)Degree(°)6/126/12
Mast height(fork lowering)h1(mm)29403500
Mast lifting heighth2(mm)30003500
Max.heighth3(mm)44105220
height to head guard(height to cab)h4(mm)26703220
Overall height(with forks)                                      L3(mm)60707200
 Fork front verticaal sueface to the rear end of the vehicle L2(mm)44705400
Overall widthb1(mm)22302750
Fork dimension(mm)1600*180*901800*200*90
Fork carriage widthb2(mm)20802500
Mast min ground(with load)m1(mm)300270
Wheelbase center min ground(with load)m2(mm)350310
Min.turning RadiusWa(mm)43505050
Travel speed(with load/without load)km/h23/2822/30
PerformanceMax.lifting speed(with load/without load)mm/s220/280240/300
tractionnKN100120
gradeability(with load/without load)%20/2220/22
 Driving brake
Hydraulic clamp disvcHydraulic clamp disvc
Engine Engine brand/model Optional one Yuchai Engine Yuchai Engine

YC6B125-T21YC6B160Z-T20
 Optional twoDongfeng cumminsDongfeng cummins
 Rated Output110(Kw)129(Kw)
 Cylinder No66
           OthersTransmission gears(Front/rear)
2/22/1

With technological innovation, our product configuration and parameters will continue to change without notice;
if there is any doubt, the specific confirmation of our international trade sales shall prevail;
