LTMG Forklift

Electric Forklift

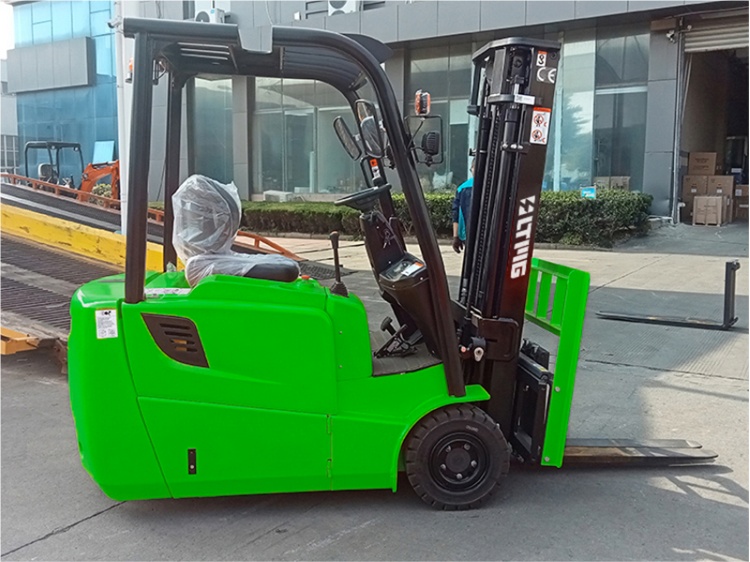

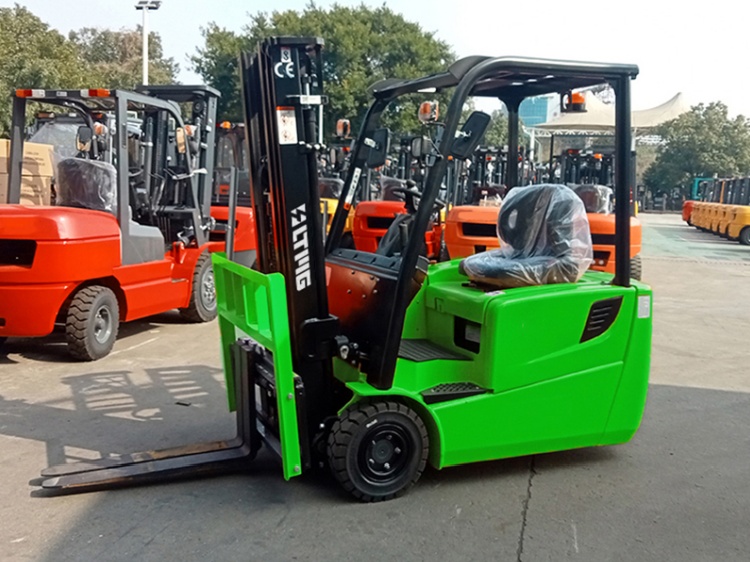

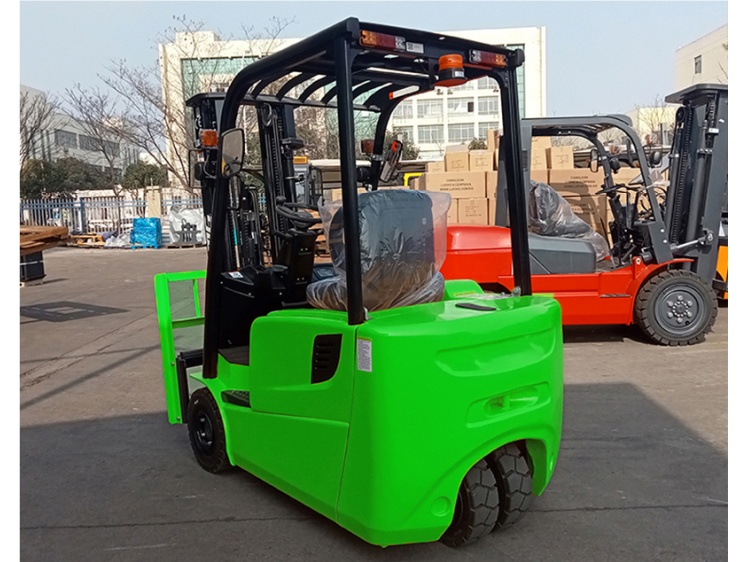

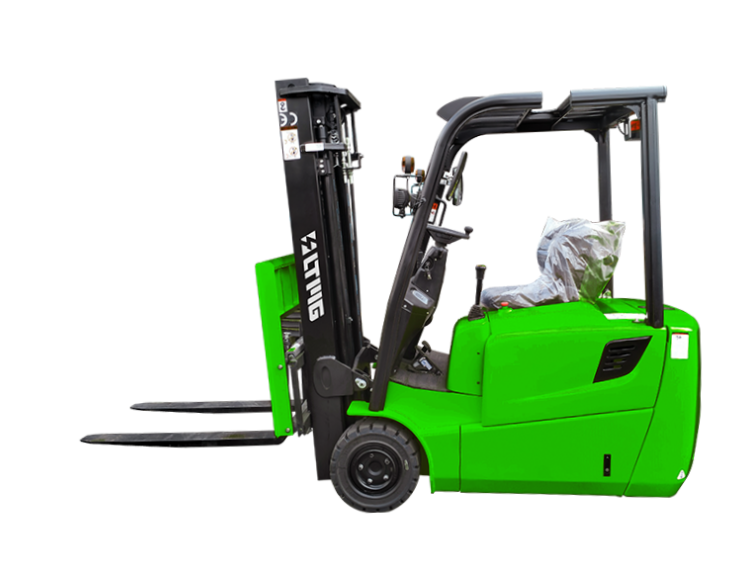

2 Ton Three-wheel electric forklift
  • 2 Ton Three-wheel electric forklift
Product manual available for download at any time
Please leave your information below for more product information
2 Ton Three-wheel electric forklift
Model
FB20S
Rated Capacity
2000KG
Lift Height
3000mm
2 Ton Three-wheel electric forklift
  • Characteristics
  • parameters
  • cases
  • recommendations
Characteristics
  1. Fully open hood, it can quickly remove from both side. Hinge design frame side door. The using of advanced design concept of battery replacement program, gives fast and convenient maintenance.

  2. Advanced dual motor driving system, compact structure, better driving and climbing performance, larger torque, more powerful output.

  3. Adopting dynamic load sensing priority steering system, more quickly steering, smaller turning radius, more flexible drivingperformance.

  4. Ergonomic full-scale operation space layout which give the operator a good, comfortable and convenient operating experience.


parameters

Model


FB20S

Power type


Electric

Rated Capacity

kg

2000

Load Centre

mm

500

Lift Height

mm

3000

Fork Size

L×W×T

mm

1070×120×40

Mast Tilt Angle

F/Rα°/β°

Deg

6°/6°

Front Overhang(Wheel center to fork face)

mm

395

Tread

(F/R)

mm

924/208

Ground Clearance(Bottom of mast)

mm

90

Fork Spread

Min./Max.

mm

240/970

Overall Dimension

Length to face of fork(Without fork)

mm

2105

Overall Width

mm

1100

 Mast Lowered Height

mm

2010

 Mast Extended Height(With backrest)

mm

3940

Overhead Guard Height

mm

2055

Turning Radius(outside)

mm

1690

Min. insecting aisle

mm

2300

Speed

Travel (Empty load)

km/h

14

Lifting (Full load)

mm/s

300

Max. Gradeability

%

15

Tire

Front


18×7-8

Rear


16×6-8

Wheelbase

mm

1460

Service Weight

kg

3760

Motor

Driven Motor

kw

2×4.5

Lift  Motor

kw

8.6

Battery

Voltage/Capacity

V/Ah

48/560

Controller

Manufacturer


CURTIS

Type


AC

Operating Pressure for Attachment

Mpa

14.5

With technological innovation, our product configuration and parameters will continue to change without notice;

if there is any doubt, the specific confirmation of our international trade sales shall prevail;
